VARIANT VX

VX 7501 3D

for rebated and unrebated doors with block frames

product image
  • Views / Videos
  • Finishes
  • Drawings
* Figures and finishes similar

VX 7501 3D

for rebated and unrebated doors with block frames

Product features

Sources of supply

Technical details

Load capacity
200,0 kg
Cutter diameter
24,0 mm
Collar ring diameter
30,0 mm

Suitable for

Rebate
rebated, rebated flush, unrebated
Type of frame
block frame

Note

Descriptive text

Item versions

Blue galvanized (SW 010)

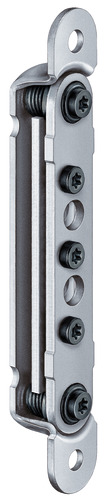

Black galvanized (SW 012)
Stainless Steel untreated (SW 041)

Universal milling frame

Template 5 250568 5

Template 5 250569 5

Combinations

VX 7939/100

  • Rebate:
    • rebated
  • Load capacity: 100,0 kg

VX 7939/100 FD

  • Rebate:
    • rebated
  • Load capacity: 100,0 kg

VX 7939/120

  • Rebate:
    • rebated
  • Load capacity: 120,0 kg

VX 7939/160

  • Rebate:
    • rebated
  • Load capacity: 200,0 kg

VX 7939/160 FD

  • Rebate:
    • rebated
  • Load capacity: 200,0 kg

VX 7939/160 Planum

  • Rebate:
    • rebated
  • Load capacity: 160,0 kg

VX 7939/160 FD Planum

  • Rebate:
    • rebated
  • Load capacity: 160,0 kg

VX 7939/160 18-3

  • Rebate:
    • rebated
  • Load capacity: 200,0 kg

VX 7939/160 18-3 FD

  • Rebate:
    • rebated
  • Load capacity: 200,0 kg

VX 7939/160 S

  • Rebate:
    • rebated
  • Load capacity: 200,0 kg

VX 7939/160 FD S

  • Rebate:
    • rebated
  • Load capacity: 200,0 kg

VX 7939/160 S WK MSTS

  • Rebate:
    • rebated
  • Load capacity: 200,0 kg

VX 7939/160 FD S WK MSTS

  • Rebate:
    • rebated
  • Load capacity: 200,0 kg

VX 7728/100

  • Rebate:
    • rebated flush
  • Load capacity: 80,0 kg

VX 7728/120

  • Rebate:
    • rebated flush
  • Load capacity: 100,0 kg

VX 7728/160

  • Rebate:
    • rebated flush
  • Load capacity: 120,0 kg

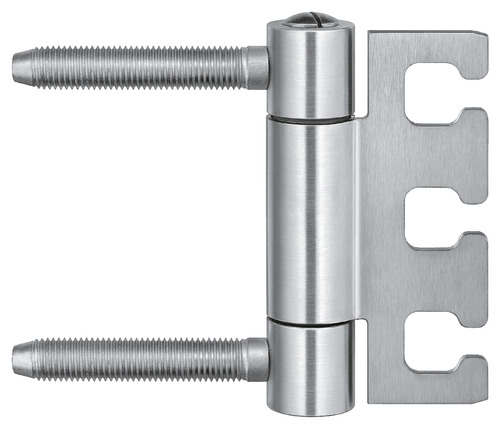

VX 7720/100

  • Rebate:
    • unrebated
  • Load capacity: 100,0 kg

VX 7729/100

  • Rebate:
    • unrebated
  • Load capacity: 100,0 kg

VX 7729/120

  • Rebate:
    • unrebated
  • Load capacity: 120,0 kg

VX 7729/160

  • Rebate:
    • unrebated
  • Load capacity: 200,0 kg

VX 7729/160 Planum

  • Rebate:
    • unrebated
  • Load capacity: 160,0 kg

VX 7729/160 18-3

  • Rebate:
    • unrebated
  • Load capacity: 200,0 kg

VX 7099 Finger Protection

  • Rebate:
    • rebated
  • Load capacity: 120,0 kg

VX 7560 KK

VX 7560 RK

VX 7560 KR

VX 7560 RR

VX 7570 KK

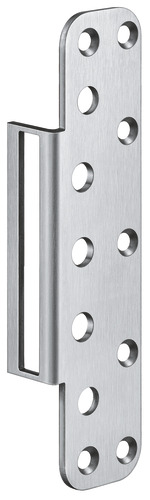

VX 7570 RK

VX 7570 KR

VX 7580

VXG 7990/100

  • Rebate:
    • rebated
  • Load capacity: 60,0 kg

VXG 7990/100 K

  • Rebate:
    • rebated
  • Load capacity: 60,0 kg

VXG 7990/120

  • Rebate:
    • rebated
  • Load capacity: 80,0 kg

VXG 7990/120 K

  • Rebate:
    • rebated
  • Load capacity: 80,0 kg

VXG 7780/100 N

  • Rebate:
    • unrebated
  • Load capacity: 60,0 kg

VXG 7780/100 K N

  • Rebate:
    • unrebated
  • Load capacity: 60,0 kg

VXG 7780/120 N

  • Rebate:
    • unrebated
  • Load capacity: 80,0 kg

VXG 7780/120 K N

  • Rebate:
    • unrebated
  • Load capacity: 80,0 kg

V 7900 WF VX-1
