VERTO

VT 101E10 SF

for double action residential and heavy-duty glass doors up to 100 kg without hold open function

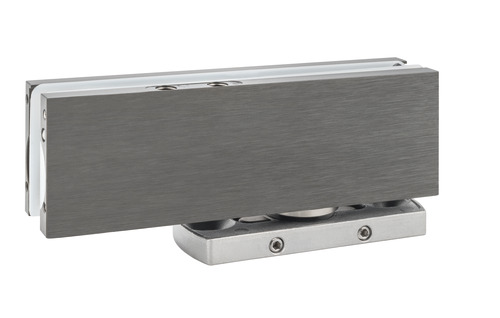

product image
  • Views / Videos
  • Finishes
* Figures and finishes similar

VT 101E10 SF

for double action residential and heavy-duty glass doors up to 100 kg without hold open function

Product features

Sources of supply

Technical details

Load capacity
100,0 kg
Opening angle
+/- 90°
Automatic closing
+ 80°, - 80°
Glass thickness
8 - 13,52 mm
Temperature range
- 10,0°C to + 50,0°C
Max. door width
1000,0 mm

Suitable for

Type of door leaf
glass

Note

Descriptive text

Quality marks

TÜV certification

Classification code

EN 1154
4
8
3/5 *1
0
1
4
*1 The front digit indicates the torques achieved and the efficiency, the rear digit indicates the maximum door weight in accordance with EN 1154:2006. All other technical characteristics are specified in the technical data sheets.
Classification code

Item versions

Raw (CO 000)

Combinations

VT 100E10 C

VT 100E20

  • Load capacity: 100,0 kg

VT 100E25
