VARIANT V

V 8100 WF U

frame part for retrofitting on doors with steel frames

product image
  • Views / Videos
  • Finishes
  • Drawings
* Figures and finishes similar

V 8100 WF U

frame part for retrofitting on doors with steel frames

Sources of supply

Technical details

Knuckle diameter
15,0 mm
Pin diameter
10,0 mm

Item versions

Blue galvanized (SW 010)
Nickelled (SW 015)

Product information

CAD drawings

Combinations

Blind rivet nut M10

V 0020

V 0020/12,5

V 0020/14,5

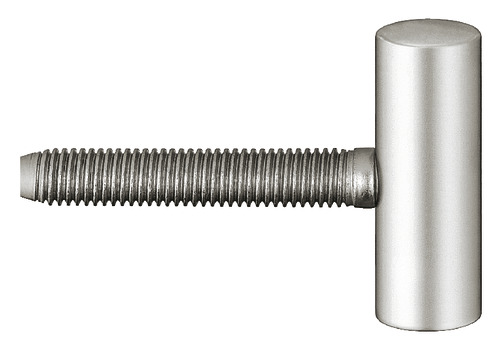

V 0020/19,5

V 0030

V 0080

V 0081

Decorative sleeve no. 1

Decorative sleeve no. 2 Basic

Decorative sleeve no. 2 Soft

Decorative sleeve no. 2 ZK

Decorative sleeve no. 3

Decorative sleeve no. 4
